Object Widget

Object Widget

A "Transformer" type widget. The Object Widget creates a JavaScript object using user-defined property names and values received through input connections. This widget is useful for grouping related data, building structured outputs, or preparing data for other widgets.



Inputs

  • One input per property (DataType: Any) — The property name is used as the key in the output object. Each input port accepts any data type.

  • trigger (DataType: Anything) — If the "Trigger port" setting is enabled, the object is only output when this port is triggered. Otherwise, any property change transmits output.


Outputs

  • output (DataType: JsonObj) — The constructed object, with keys/values as defined by the widget's properties.

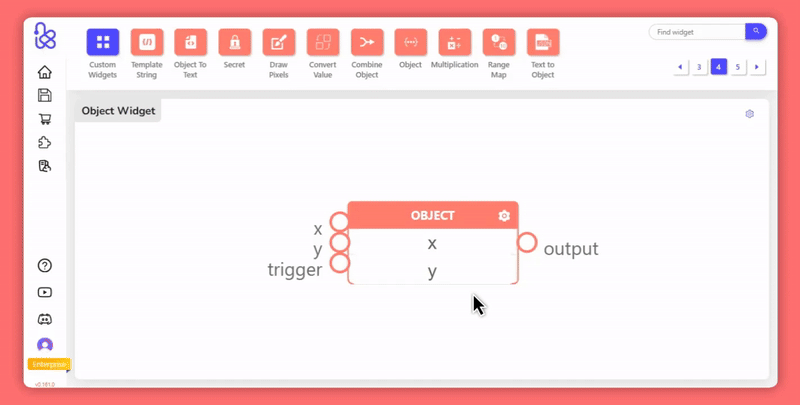

Custom Settings

  • properties — Number of properties to include in the object (up to 20). Each property creates a corresponding input port.
  • trigger port — If enabled, the object is only output when the trigger port is activated. If disabled, the object updates automatically when a property value changes.
  • property name — Editable field shown directly in the widget to define each object key.

Custom Settings



Example

Basic Object Creation

Create an object with two properties, name and age:


Drag the example onto the workspace to explore and experiment!



In this example:

  1. The Object Widget is configured with 2 properties: "name" and "age", which creates 2 corresponding input ports
  2. The Object Widget receives the value "John" from a Text Widget connected to the name input port, and the value 50 from a Value Widget connected to the age input port
  3. The resulting object { name: "John", age: 50 } can be seen in the Port Inspector tool by clicking on the Object Widget's output port



Glossary

  • Port Inspector

    The Port Inspector is a panel in Kemu’s Logic Mapper that shows details about a selected port. It can be enabled or disabled from the settings menu (gear icon). When visible, clicking a port will load its information, including:

    • Data Type (e.g., Object, Array)
    • Port Type (Source or Target)
    • Last Value (latest transmitted data)

    This helps you inspect values, review port behavior, and debug connections.
